Farpoint 2 Inch Cheshire Collimator

SKU: FP261

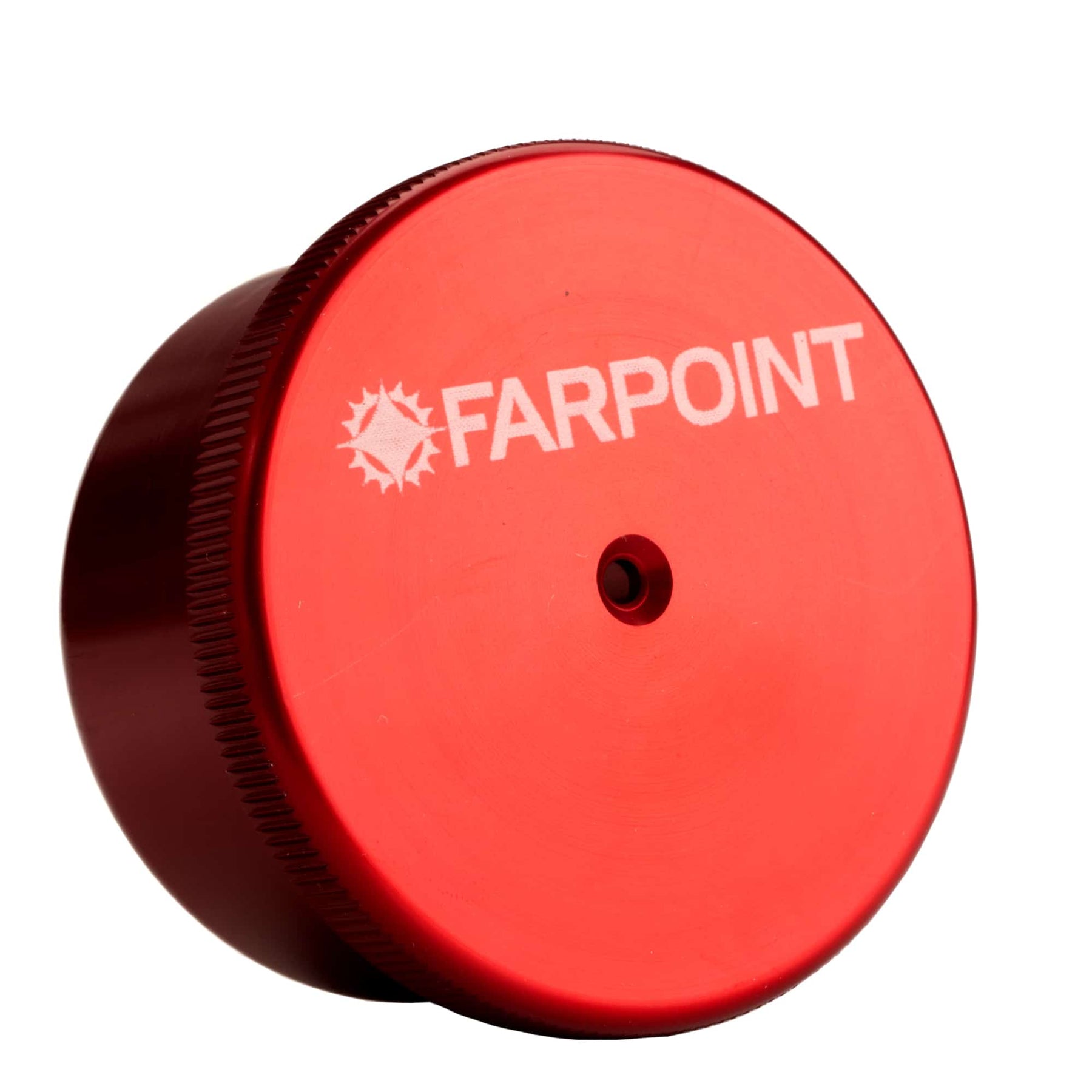

Product Shot FP261 (6795764990105)
Farpoint 2 Inch Cheshire Collimator

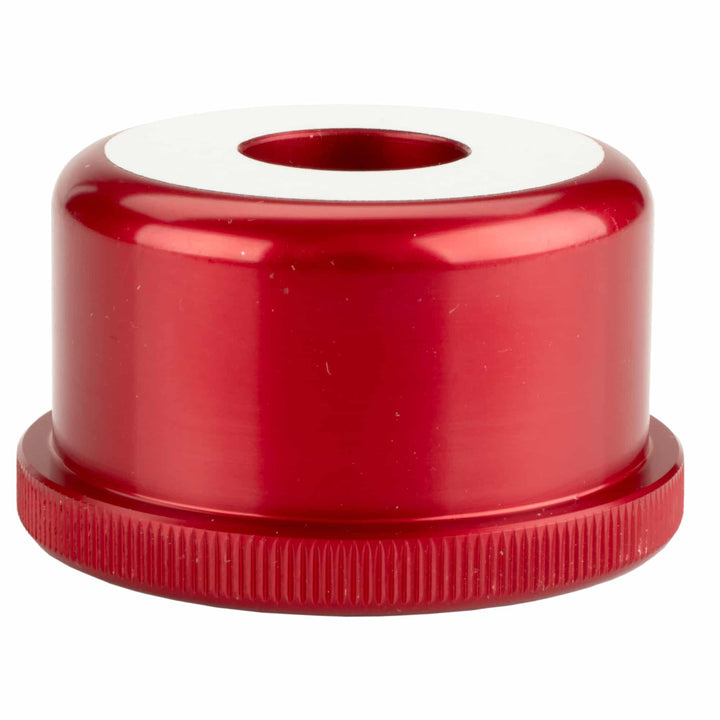

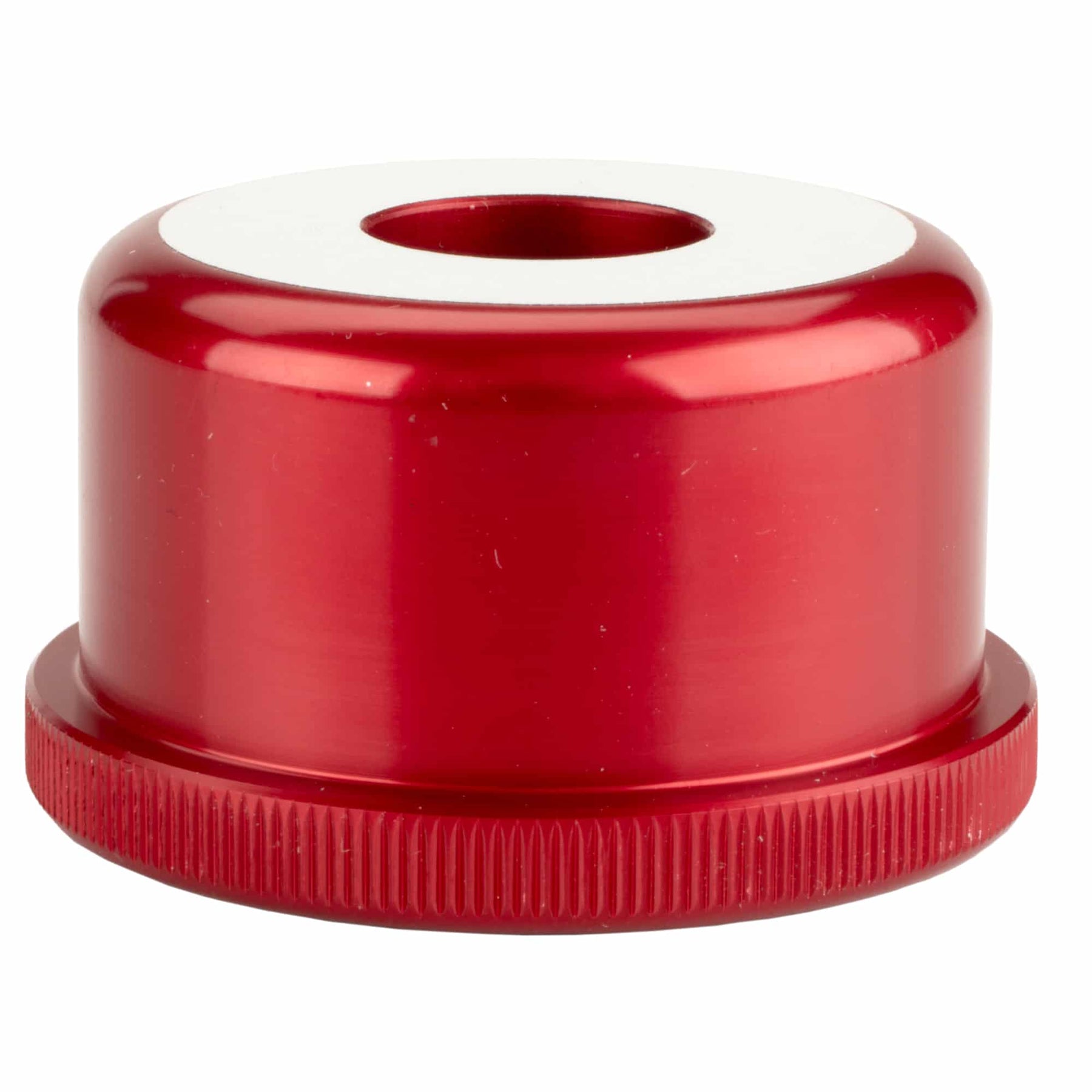

Side Shot FP261 (6795764990105)

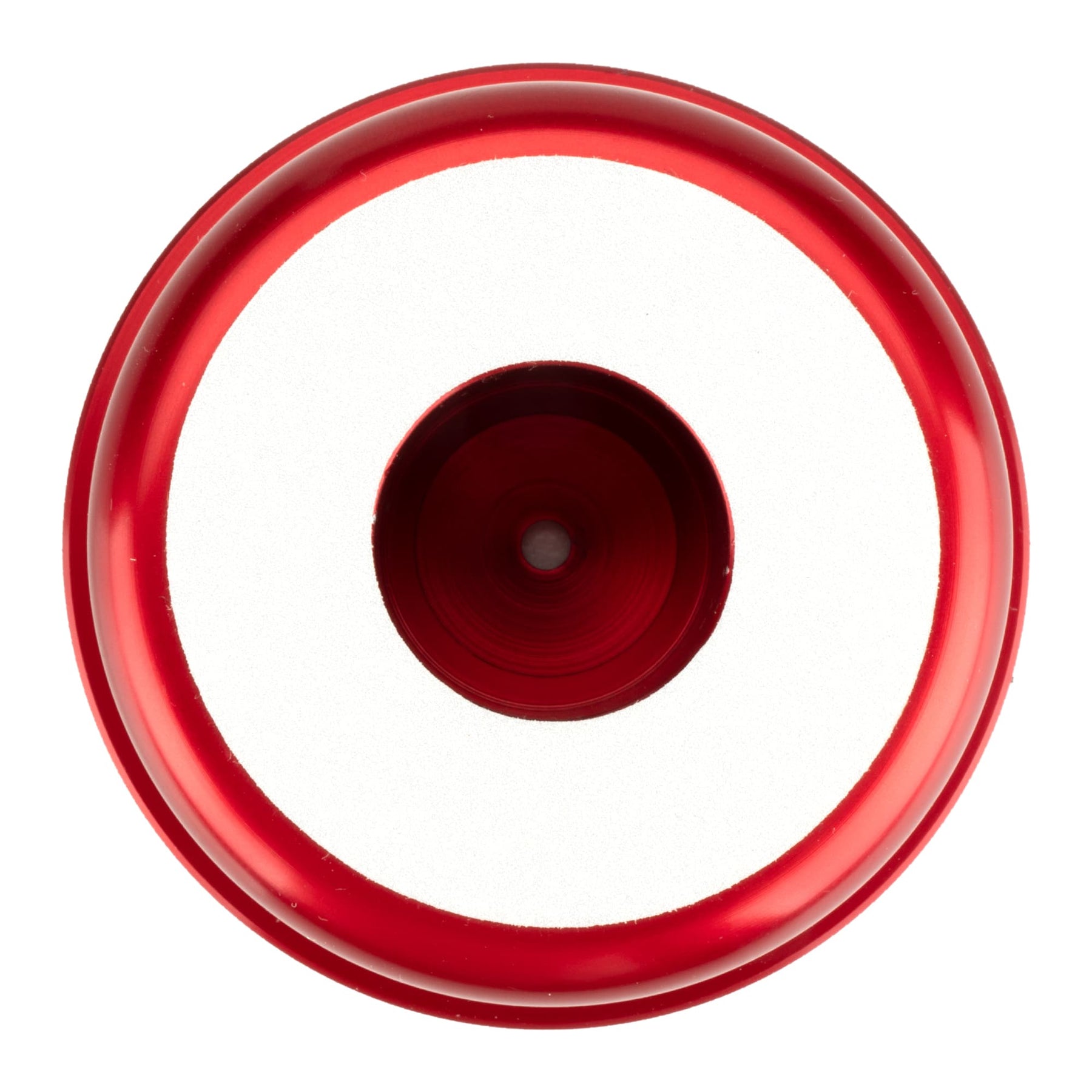

Top Down Product Shot Raw FP261jpg (6795764990105)

Farpoint 2 Inch Cheshire Collimator

SKU: FP261
Regular price $78.00
/
  • Secure payments
  • Low stock - 8 items left
  • Inventory on the way
Shipping calculated at checkout.

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
33%
(1)
0%
(0)
D
Dale Fife
GREAT COLLIMATOR FOR MY SCOPE

I bought the collimator to compare it against my cheap Chinese laser (which I didn't trust) and sure enough, it outpreformed the laser. My scope is a 12.5" F/4.8 Telekit with a John Lightholder primary mirror - coated with Max-R reflectivity, by Spectrum coatings. I like the ability to check "mechanically" vs. laser for my optical collimation. The unit is slightly heavy and robust which fits well in my Moonlite focuser, flawlessly. After collimation with the Farpoint, my views of Jupiter the past few clear nights have been substantially improved. Dale Fife - Nebraska

M
Mitchell Wax
Farpoint 2 Inch Cheshire

I also bough the Apertura Cheshire and feel the Farpoint white reflective ring is not as prominent as the aluminum reflective ring on the lower priced Apertura.

B
Benjamin Loftin Loftin
Well made

Well made and works great! I used with my 10" RC tobget mirrors at least close before using a lightee collimation tool.

Farpoint 2 Inch Cheshire Collimator is a simple tool that helps align the optical axes of the mirrors of a Newtonian reflecting telescope, a process called collimation. This precision-machined alignment tool for 2″ apertures is practically indestructible and requires no batteries. For Newtonian Reflectors only.


Farpoint 2 Inch Cheshire Collimator


Farpoint 2 Inch Cheshire Collimator is a simple tool that helps align the optical axes of the mirrors or lenses of a telescope. This is a process called collimation. This precision-machined, red anodized alignment tool for 2″ apertures is practically indestructible and requires no batteries.

A Cheshire eyepiece or Cheshire collimator consists of a peephole that is inserted into the telescope focuser in place of the eyepiece. Ambient light falls on the brightly painted oblique back of the peephole. Images of this bright surface are reflected by the mirrors of the telescope and can thus be seen by a person peering through the hole. A Cheshire eyepiece contains no lenses or other polished optical surfaces. For Newtonian Reflectors only.

Includes a mirror spotting template and triangle center spots to help simplify the process of center spotting a primary mirror.

Why is collimation even necessary?

Telescopes, like cameras, have an optimal position that gets the sharpest rendering of an object. That position is called the focal plane. The problem is that your telescope’s mirror produces its sharpest images only at the center of the focal plane. So, you want to be sure that’s the part of the image you’re magnifying with your eyepiece. If instead, you aim your eyepiece slightly away from the center of the focal plane, the image will be blurred somewhat by a nasty optical aberration called a coma. Not Collimating your scope will have details become lost as you are processing your images.

This is why you want to collimate your scope — To Get the Sharpest possible image from your rig

More Collimation Tools

We generally keep collimation tools in stock. However, sometimes we run out. If the item is not immediately in stock, we make it to order and it takes 7 to 10 days to ship. If you have not received a tracking number in that time, please email support@opticalstructures.com for information regarding your order.

Our standard acetate mirror center marking template works with mirrors up to 10”. If your mirror is larger, you can print out the file below, tape it together, and use it to mark your larger mirror.

Large mirror center marking template
