Speed Dial Drill Adapter · 5/8″ Leveling Screws
Cut Wheeley Bar setup time by 50%+ — spin your leveling screws up and down with a cordless drill.
The JMI Speed Dial Drill Adapter turns leveling your Wheeley Bar from a tedious hand-cranking job into a 30-second cordless-drill task. The adapter fits any standard drill chuck; the business end has claws that grip the knob of your leveling screw and spin it up or down with the drill's torque doing the work. No more bending, no more sore forearm at the end of a long observing session.
This is the 5/8″ version — designed for JMI Wheeley Bars with 5/8″ leveling screws (the current heavy-duty standard on HD Medium, HD Large, and HD Shorty bars). For Standard Medium or older HD models with 1/2″ leveling screws, see the 1/2″ Speed Dial Drill Adapter. Made in the USA by JMI, part of the CXB Astro family.
Confirm your leveling screw size before ordering. This adapter works with 5/8″ leveling screws only. Pull one leveling screw out of your bar and measure the thread diameter. 5/8″ is the current HD standard; 1/2″ is the older standard. If you have 1/2″ screws, order the 1/2″ version instead.
Specifications
Designed for
JMI Wheeley Bars with 5/8″ leveling screws — current HD Medium, HD Large, and HD Shorty models
Construction

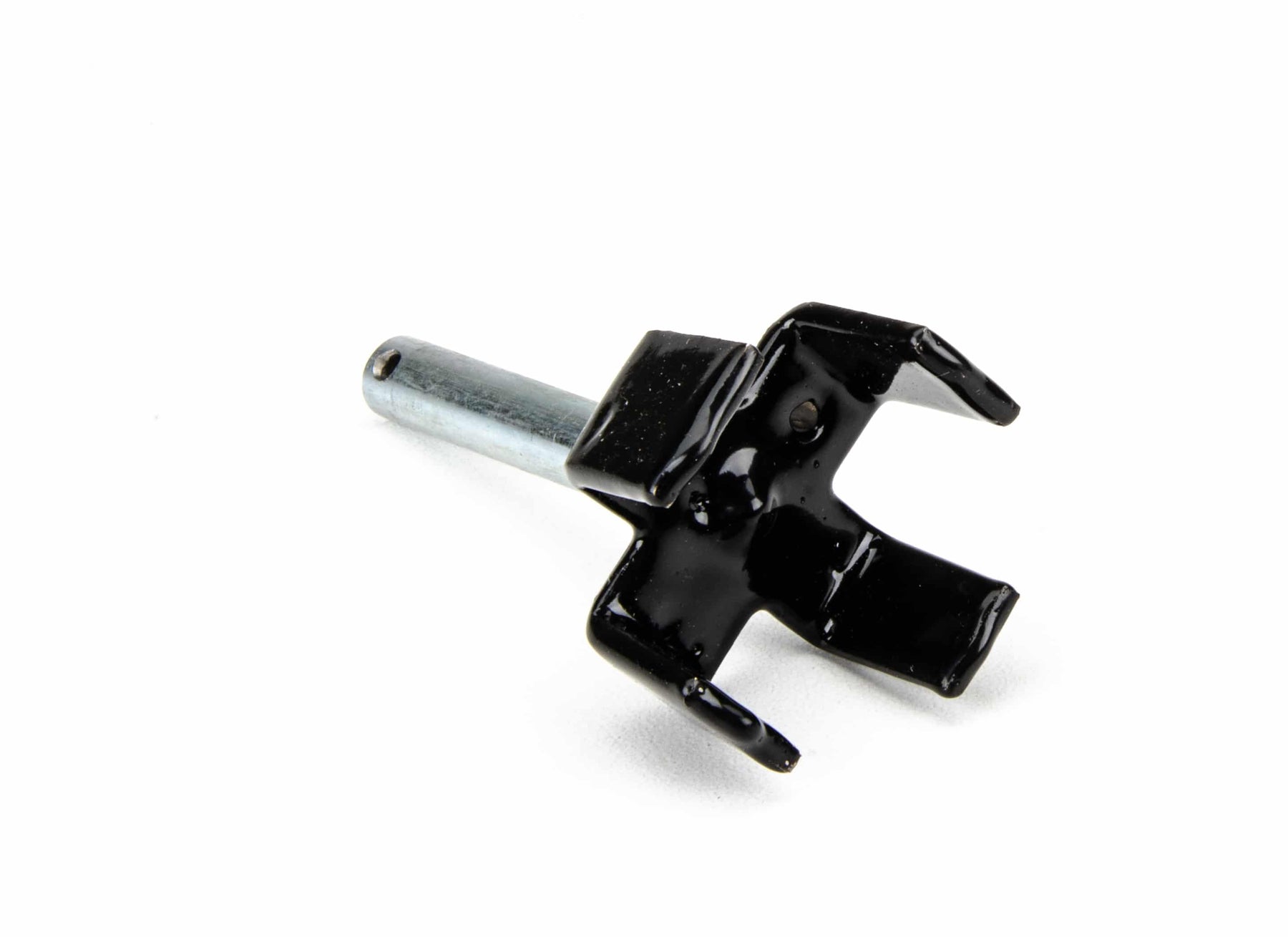

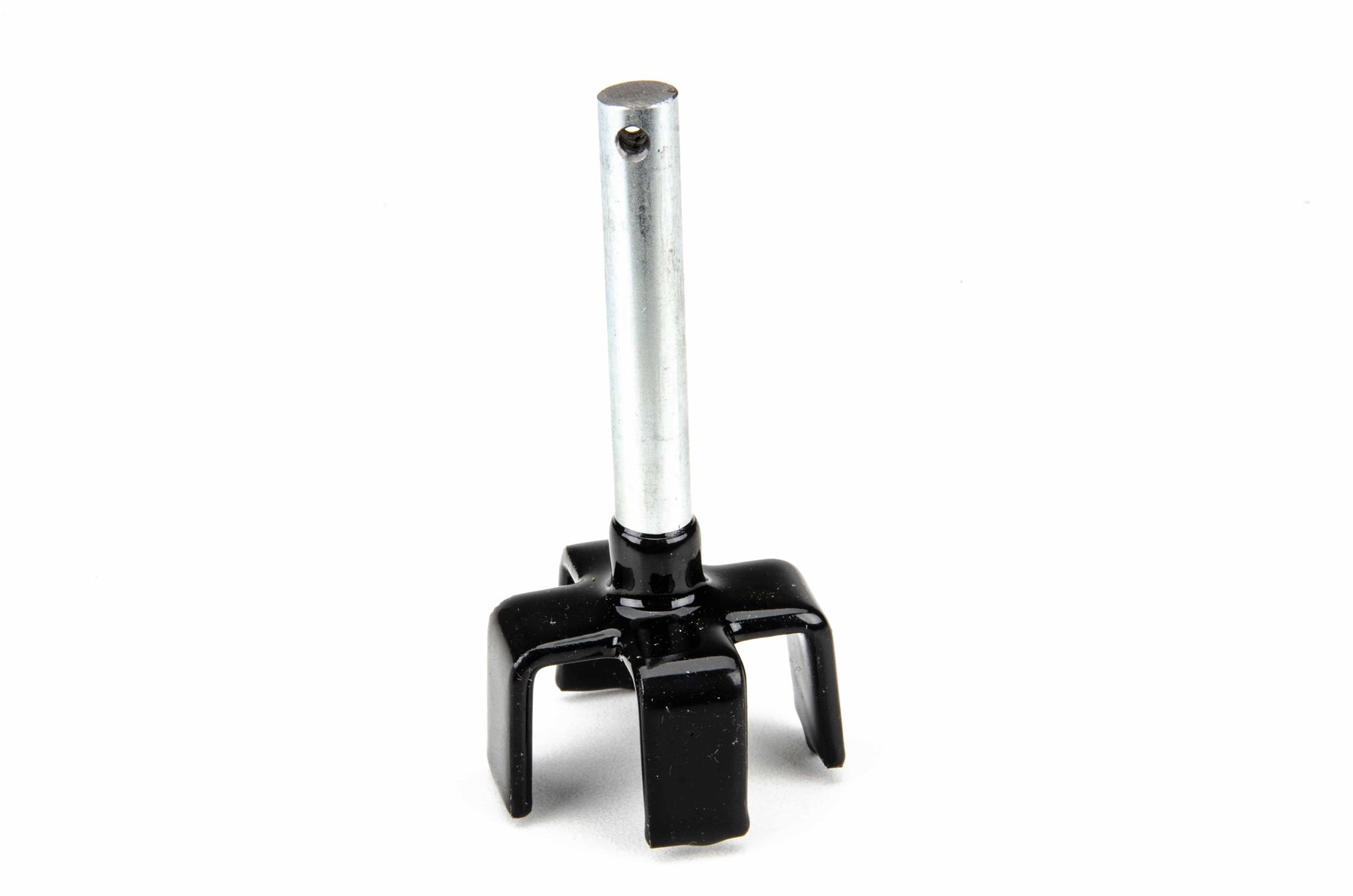

Steel adapter with hex shaft for cordless drill chuck · claw end grips the leveling screw knob
How it works

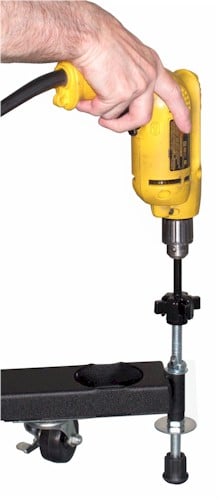

Chuck the adapter into any cordless drill · place the claws over the leveling screw knob · trigger the drill to raise or lower the screw
Setup time savings
Roughly 50%+ faster than hand-cranking · saves about 5–10 minutes per setup
NOT compatible with
Standard Medium (uses 1/2″ leveling screws) · older HD models that still ship with 1/2″ screws · Triangle Style · Sky Trekker series
Made in
USA by JMI · part of the CXB Astro family
1/2″ Leveling Screws Instead?
If your Wheeley Bar uses 1/2″ leveling screws — Standard Medium, or older HD Medium/Large models from before the 5/8″ upgrade — order the 1/2″ Speed Dial Drill Adapter instead. Same price ($47.30), same time-saving design, sized for the smaller thread.
Frequently Asked Questions
How do I know if I have 1/2″ or 5/8″ leveling screws?
Pull one leveling screw out of your Wheeley Bar and measure the thread diameter with calipers or a ruler. 5/8″ is the current HD standard — common on the newest HD Medium, HD Large, and HD Shorty bars. 1/2″ is the older standard — used on the Standard Medium bar and earlier HD model years. If still unsure, email support@cxbastro.com with a photo and we'll confirm.
Will any cordless drill work?
Yes — the adapter has a standard hex shaft that fits any 3/8″ or larger drill chuck. Cordless or corded, brand doesn't matter. Most observers use whatever cordless drill they already own.
How much time does it actually save?
Roughly 50% or more depending on how high you need to level. Hand-cranking three leveling screws to a typical observing-site height takes most observers 5–10 minutes (and a sore forearm). With the drill adapter, the same three screws are done in 30–60 seconds. Across a season of observing, you'll recover the cost of the adapter in time saved during the first month.
Does it fit Triangle Style or Sky Trekker bars?
No — those are Dobsonian bases with a different leveling-screw design. The Speed Dial Drill Adapter is for Universal-style Wheeley Bars only.
Any concerns about over-torquing the leveling screws?
Use a low torque setting on your drill and stop spinning when the foot makes contact with the ground. The screws are designed to handle the torque, but over-driving them into the ground (or against the bar's stop) can strain the threads over time. Treat the drill like a powered fingertip — it does the work, you control when it stops.
