JMI Heavy Duty Large Size Universal Wheeley Bar 5" wheels only

SKU: TPWULG
TPWULG5 (6795809685657)
JMI Heavy Duty Large Size Universal Wheeley Bar (6795809685657)
wheeley bars-5 (6795809685657)
wheeley bars-6 (6795809685657)
wheeley bars-2 (6795809685657)
JMI Heavy Duty Large Size Universal Wheeley Bar 5" wheels only

JMI Heavy Duty Large Size Universal Wheeley Bar 5" wheels only

SKU: TPWULG
Regular price $615.00
/
  • Secure payments
  • Low stock - 4 items left
  • Inventory on the way
Shipping calculated at checkout.

Customer Reviews

Based on 8 reviews
50%
(4)
13%
(1)
0%
(0)
13%
(1)
25%
(2)
T
Thomas Beck
Please contact me asap

I have sent emails and left voicemails with no response. You shipped a kit intended for caster wheels. I ordered and received 10” pneumatic tires. Without the correct kit, there is no way to attach the steering assembly so I essentially have a non-functional and useless product configuration. Please Answer the phone or respond to voice mails or emails

r
robert sackheim

it came in complete! And because your business seems to be failing as evidence by no response to my phone calls or emails. I definitely have an expensive problem on my hands. This is a very troubled company.

M
Michael Green
Nice!

The JMI large Wheely Bar is awesome. It was very easy to assemble, and the parts were well packaged. I have not as of yet placed my tripod on it for a test fit but I cannot wait! The only knock I have is that I called Farpoint 5 times before I purchased the Wheely Bar and left messages but never received a call back. Kind of an odd way of doing business.

C
Christopher Rose
It is big but works like it should

Was a bit too big for my setup however I fully extended the tripod. It’s well made.

J
Jeff Brooks
Poor customer service

I recently ordered the JMI Wheely Bar from FARPOINT ASTRO. I was excited to recieve the item so promptly. I was unpacking the boxes and I noticed th an item was missing which is cruical to the assembly. I have made numerous calls to try and get this resolved. When someone answers the phone. They transfer me to another person. They take my name and number and say that someone will return my call. I have called in for the past two days and no one returns the call. I am very dissatisfied now and I would like to return the items and get a refund. However, in order to do this you have to contact them.to obtain a return code. I have been unable to even get that. The only choice I have is to contact my credit card company and dispute the charges. Maybe at that point someone from FARPOINT will contact me so I can return all items. I am very disappointed. I will never order from this company again.

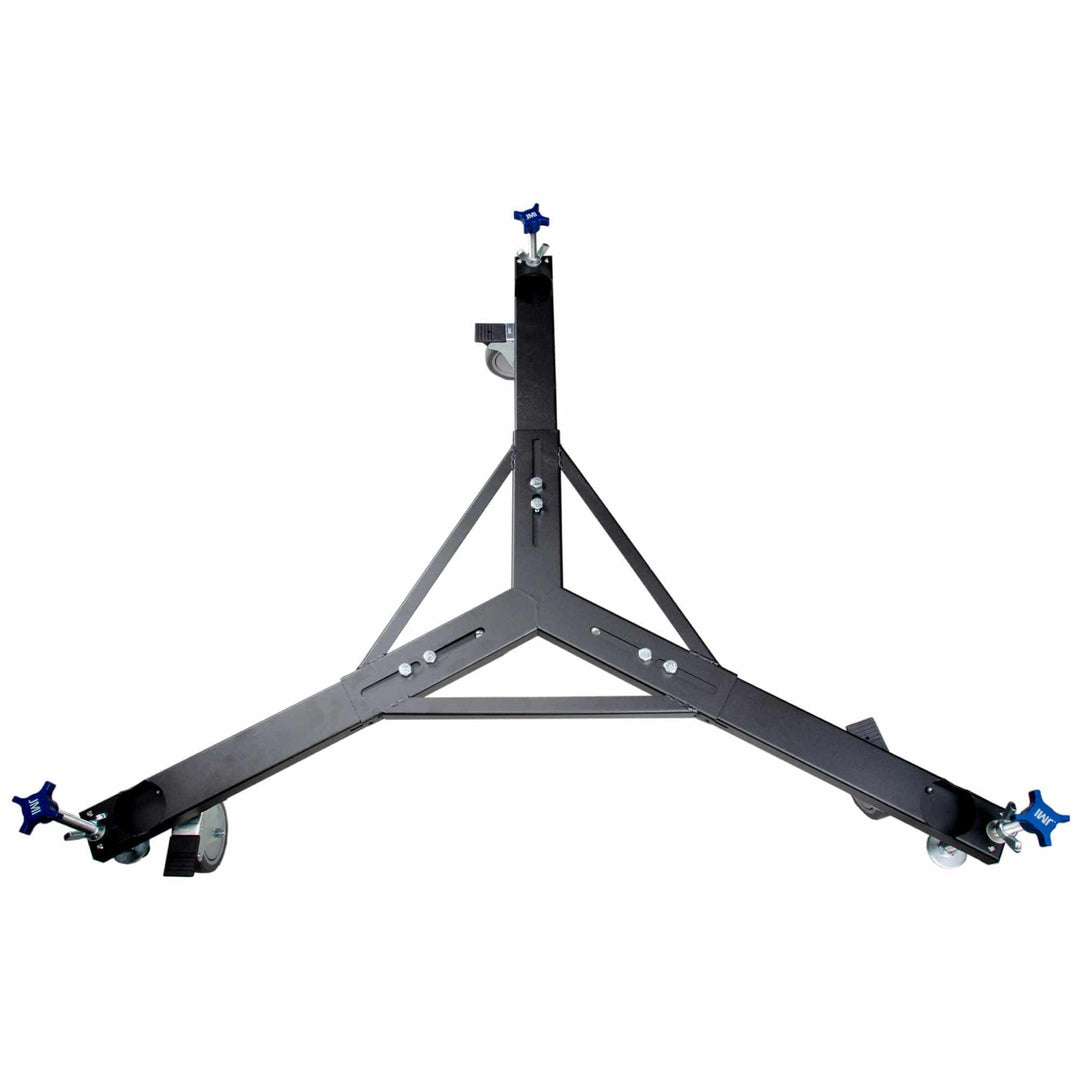

JMI HEAVY-DUTY Large Size Universal Wheeley Bar Telescope Dolly


All Heavy Duty Large Size Wheeley Bars fit tripod tip-to-tip distance of 49 - 56.5 inches. The only difference between the Medium Heavy Duty and Large Heavy Duty Wheeley Bars is the length of the legs.

Maximum Load: 300 lbs

Tip receptacle is 2-3/4″ I.D. Will not fit tripods with feet larger than 2-3/4 inches.

The 2 3/8" wheels and 1/2" leveling screws are no longer available on the Medium Heavy Duty Wheeley Bars. The Standard Package now comes with 5" Wheels and the Heavy Duty 5/8" Leveling Screws.

These new style Large Heavy Duty Wheeley Bars now fit the Losmandy HD Tripod Gen2 (tubular design) for G-8 or G11 mounts. The old Losmandy specific Wheeley Bars have been discontinued.

See doorway measurements for more dimensions and fitting through a door.


JMI HEAVY-DUTY Large Size Universal Wheeley Bar Telescope Dolly is a portable dolly for your telescope.

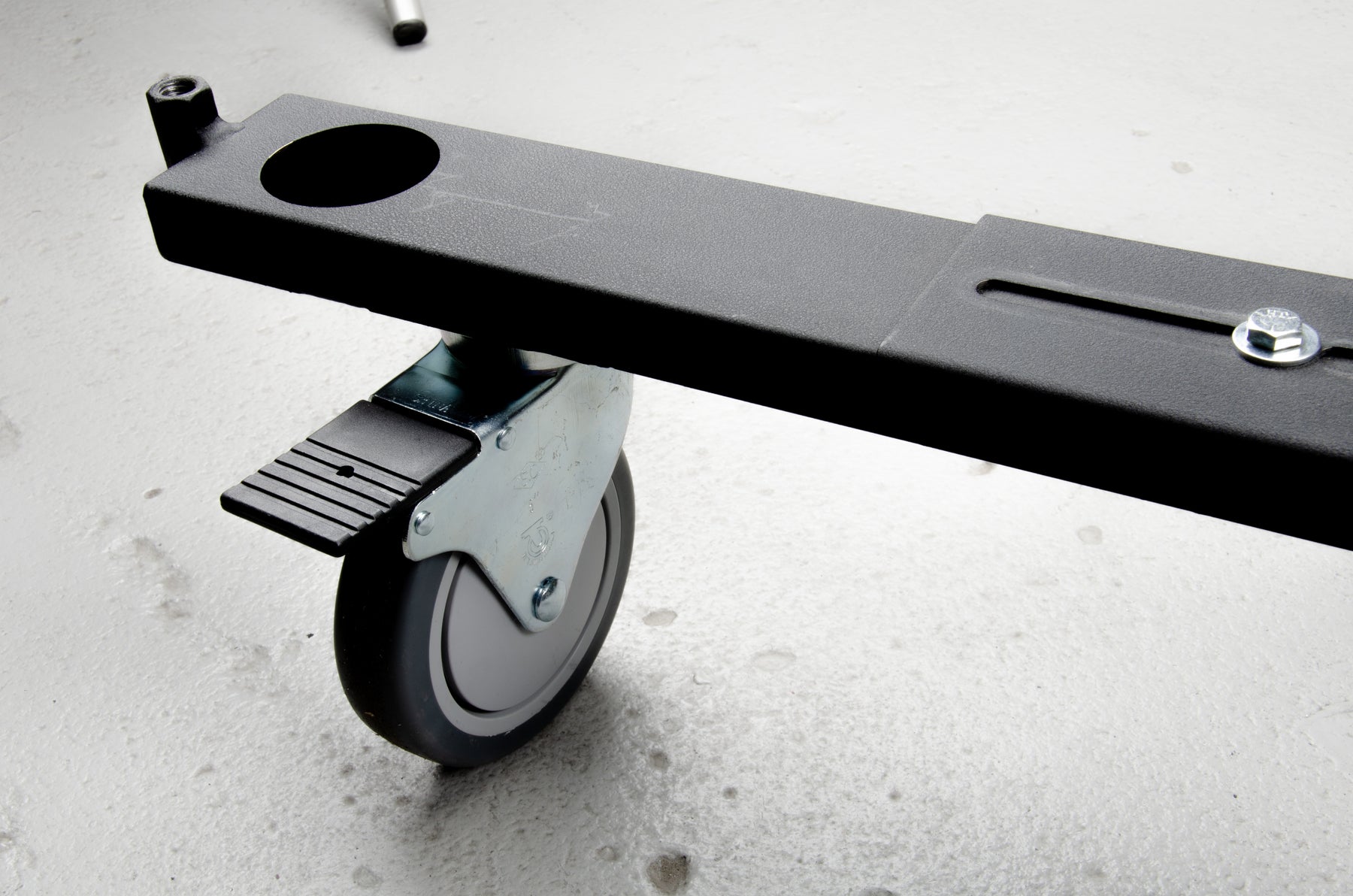

Constructed of a sturdy base with locking wheels and leveling bolts, the heavy-duty version is designed with heavier telescopes in mind. Save your back! Our Wheeley Bars create an easier and faster way to move mounted telescopes to and from observing locations.

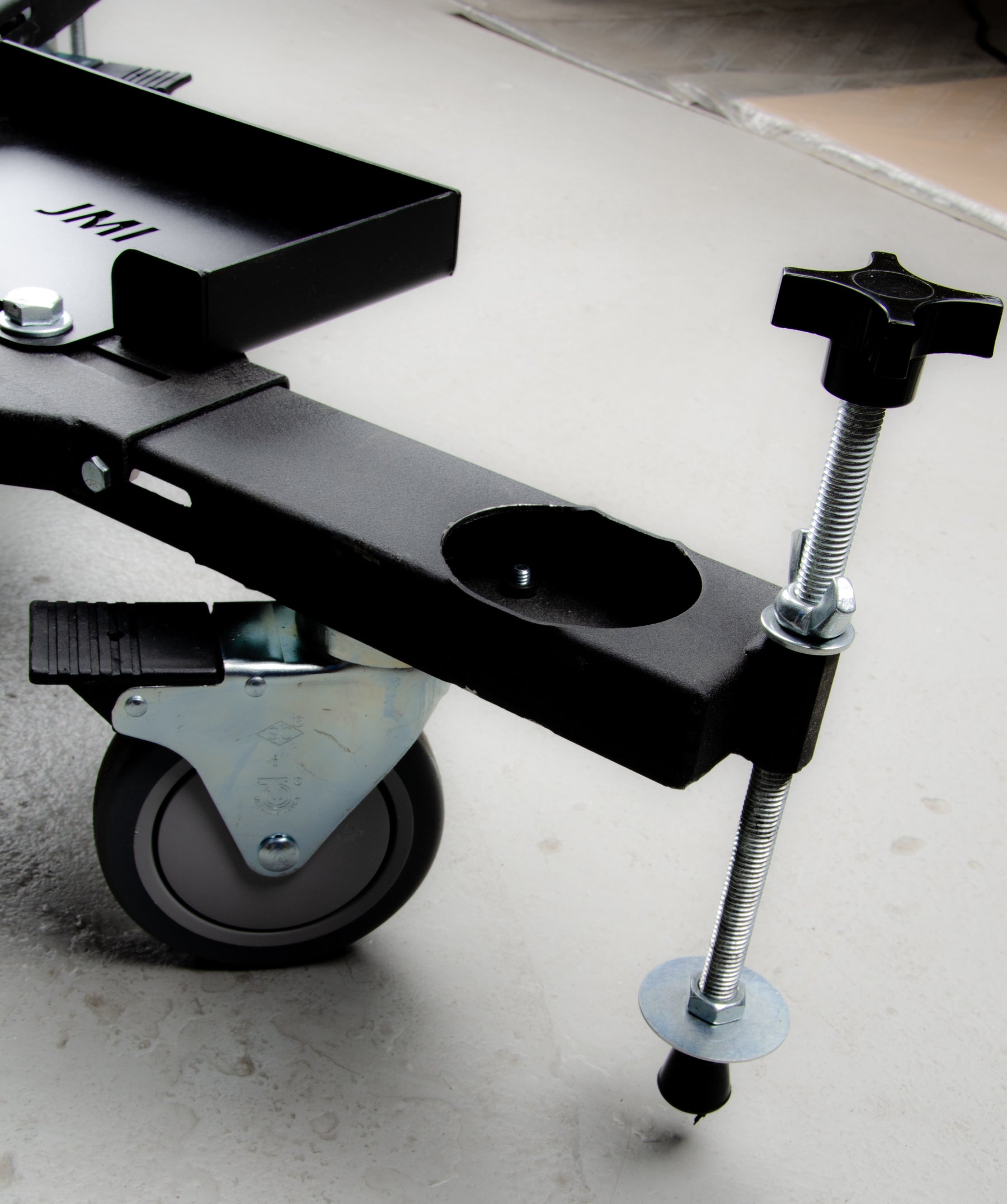

Easily move, lock and level the complete telescope assembly from location to location without the need to disconnect and reconnect all the electrical and computer cabling during transport. Standard equipment includes Heavy Duty 5/8" Leveling Screws.

This HEAVY-DUTY Version is designed for heavier equipment with the same footprint as the standard Medium Wheeley Bars but with stronger, heavier-duty construction. Because of the increased weight with the same base width, there will be a greater risk of toppling over due to the high center of gravity. To prevent damage from falling over, the equipment will need to be strapped down to the Wheeley Bars. As with all Wheeley Bars, JMI will not be responsible for equipment tipping over.

What is Tip-to-Tip Distance?

To be sure that your tripod or pier will fit a particular Wheeley Bar product, it may be necessary to verify the tip-to-tip distance of the mount.

Choose your Wheely Bar model based on tip to tip distance. To measure that, setup your telescope at observing height...not all the way up or down, but at the height that gives a comfortable eyepiece height. Remember to make allowance for the height of the Wheeley Bars. Please keep in mind that the 5" wheel set raises the setup about 6"; the 10" wheel set raises the setup about 3.5". So the procedure is:

1. Setup your tripod at observing height

2. Lower your tripod 6 inches if you are getting the 5" polyurethane wheels. Lower your tripod 3.5 inches if you are getting the 10" pneumatic wheels.

3. NOW measure the distance between two tripod tips. This is the distance you should use to choose between the HD Medium or the HD Large Wheeley Bars, etc.


Doorway Measurements

We often get questions regarding the width of our Wheeley Bars to determine if they will fit through a particular doorway. The following information should help in making that determination.

The following dimensions do not apply to Wheeley Bars that have been upgraded with 10" large wheels. For Universal Wheeley Bars with the 10" Large Wheel Upgrade the doorway width must be three (3) inches wider than the tip-to-tip distance.

There are three basic measurements as noted above.

    • The maximum width (X) is measured in a similar fashion as the tip-to-tip distance except that the measurement is made to the outside corner of the legs or leveling screws (typically about 3" wider than the tip-to-tip measurement of a pointed tip tripod mount).
    • The minimum measurement (N) is from the end of one leg to the inside measurement on the opposite side. This would help in determining the narrowest door that the Wheeley Bars could possibly be maneuvered through.
    • A third measurement (W) is in between the other two and gives the width as measured from the end of one leg to the outside measurement of the opposite side.

The illustration on the left shows the Universal Wheeley Bars turned so they can be pushed through the doorway based on the NORMAL width (W) without having to do any special maneuvering.

The second illustration shows the Universal Wheeley Bars being maneuvered by twisting them through the doorway based on the absolute MINIMUM dimension (N).

The third illustration shows the Wheeley Bars being blocked from moving though a doorway because they are positioned such that the MAXIMUM profile (X) is being presented.

Universal Wheeley Bars are called Universal because they are made to be adjustable to handle various sizes of mounts. This means that the measurement we have been talking about can vary depending on the in-out adjustment of the Wheeley Bar legs. The table below shows the minimum and maximum for the different widths indicated by the variable W, N and X.


Width Dimensions for Universal Wheeley Bars
Size Normal Width
(W)
Minimum Width
(N)
Maximum Width
(X)
Min Max Min Max Min Max
Medium 32" 36" 22.625" 25.625" 36" 41"
Medium HD 33" 40" 29" 34" 38" 47"
Large 44.75" 49.75" 36.5" 40" 50.5" 56.5"
Extra Large
Max


What Size Wheels Should I Purchase?

For hard surfaces, such as concrete sidewalks, with seams or cracks, the 5″ polyurethane wheels are best.

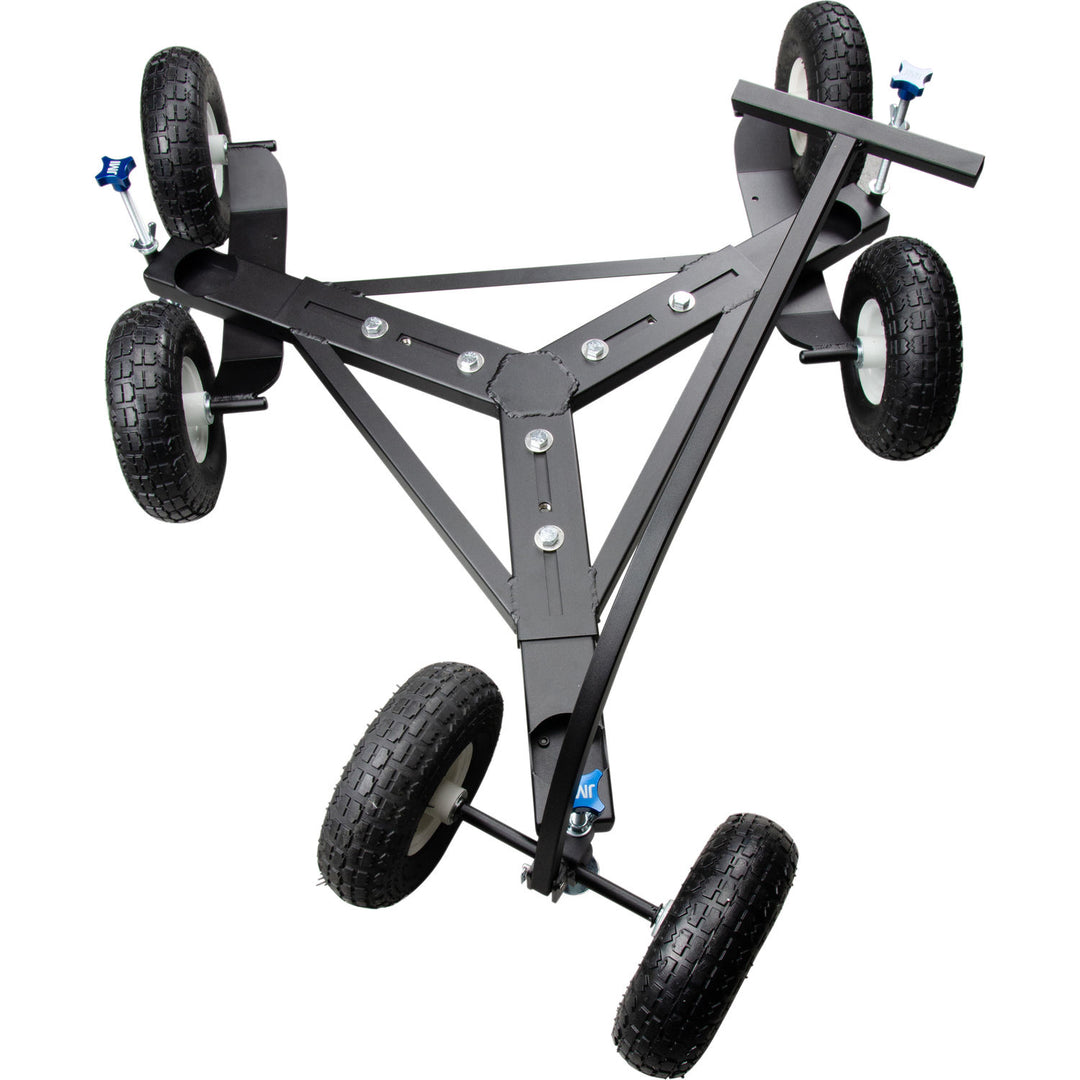

The large 10″ all-terrain pneumatic rubber-tire wheels are designed for field use on rough surfaces such as grass, dirt and gravel. However, great care must be taken in maneuvering on these surfaces, particularly when wet, because the wheels may sink below the surface.

We do not recommend using Wheeley Bars on these surfaces under adverse conditions, especially if you have a very heavy telescope.How We Make our Wheely Bars Also Check Out JMI's Large Heavy Duty bars

All Large Duty Wheeley Bars fit tripod tip-to-tip distance of 49 - 56.5 inches.
Tip receptacle is 2-3/4″ I.D. Will not fit tripods with feet larger than 2-3/4 inches.

Standard Package comes with 5" Wheels and Heavy Duty 5/8" Leveling Screws.

Options can be configured at a discount.


JMI Large Size Universal Wheeley Bar


JMI Large Size Universal Wheeley Bar creates an easy way to move mounted telescopes to and from observing locations. This is fits tripods with a tip-to-tip distance of 49″-56.5″. To determine tip-to-tip distance, setup your tripod at observing height, (the height that gives you a comfortable eyepiece height, not all the way up or down). Then measure the distance between two tripod legs. This is your tip-to-tip distance.

Consists of a sturdy base with locking wheels and upgraded Heavy Duty 5/8″ leveling bolts. Easily move, lock and level the complete telescope assembly from location to location without the need to disconnect and reconnect all the electrical and computer cabling during transport.

Standard Wheeley Bars are designed to be used on hard flat surfaces only. The optional 10" large-wheel upgrade, with great care in maneuvering and ideal conditions, can be used on grass, dirt and gravel surfaces. Wheeley Bars are generally designed to be used with the tripod legs almost fully retracted to reduce the overall width.

Compatible with:

    • ATS Portable Pier mount (may require custom product if tip-to-tip distance is less than range shown below)
    • Losmandy HD Tripod Gen2 (tubular design) for G-8 or G11 mounts
    • Celestron C14
    • Celestron CGE 925** / 1100** / 1400***
    • CI-700 mount
    • Meade LX90GPS 12″
    • Meade LX200-ACF 12″ / 14″
    • Meade LX200 12″ (GPS and non-GPS), LX200GPS 14″
    • Meade LX200R 12″ / 14″
    • Meade LXD700 / 750 mounts
    • RCX400 10″ / 12″ / 14″
    • Particle Wave Technologies Monolith Pier mount





** Celestron CGE 925 and 1100 mount may require Medium Size Universal Wheeley Bars depending on the tip-to-tip distance. It may also require the 10″ Pneumatic Large Wheel Upgrade (to lower the mount to an acceptable height).

*** Celestron CGE 1400 mount may require Custom Size Universal Wheeley Bars depending on the tip-to-tip distance. It may also require the 10″ Pneumatic Large Wheel Upgrade (to lower the mount to an acceptable height).


What Size Wheels Should I Purchase?


For hard surfaces, such as concrete sidewalks, with seams or cracks, the 5″ polyurethane wheels are best.

The large 10″ all-terrain pneumatic rubber-tire wheels are designed for field use on rough surfaces such as grass, dirt and gravel. However, great care must be taken in maneuvering on these surfaces, particularly when wet, because the wheels may sink below the surface.

We do not recommend using Wheeley Bars on these surfaces under adverse conditions, especially if you have a very heavy telescope.
