Filters in stock ship usually ship within 3 days.

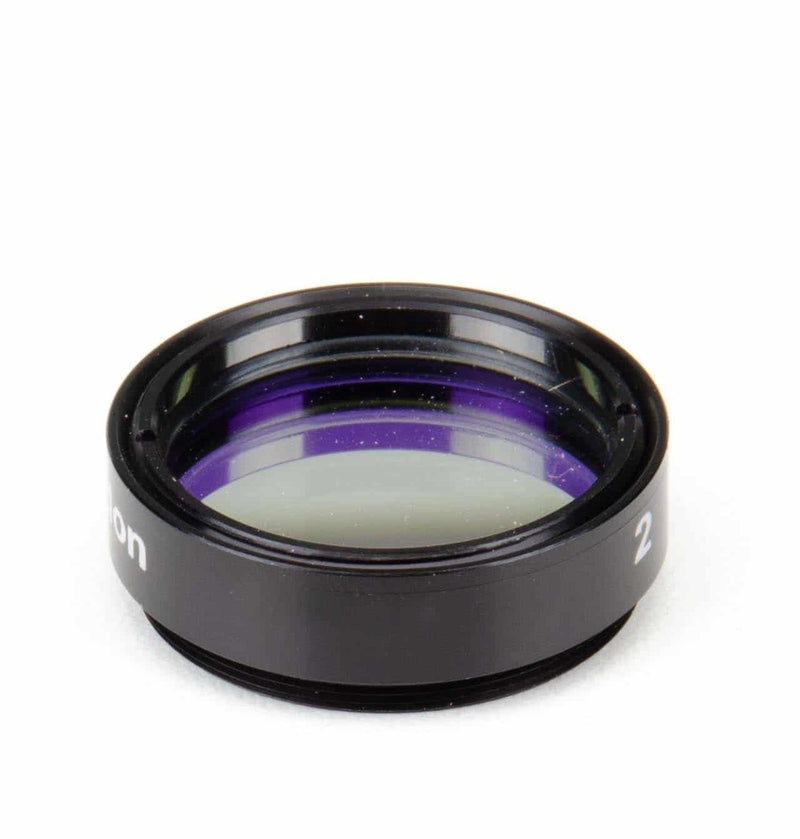

CXB (formerly Astrodon) UVENUS FILTER

• <0.01%T 285-305 nm; <0.1%T 420 – 1100 nm

• Image the cloud structure of Venus and Jupiter with CCD cameras on a telescope.
• Use for general UV photography (flowers, insects, forensics).

https://youtu.be/t5NAIbV1l8o


CXB (formerly Astrodon) UVENUS FILTER

CXB (formerly Astrodon) introduces a breakthrough in UV filters for CCD imaging. A durable, hard-coated UV filter of the highest quality having the best transmission available.

• Image the cloud structure of Venus and Jupiter with CCD cameras on a telescope.

• Use for general UV photography (flowers, insects, forensics).

The CXB (formerly Astrodon) -Schuler UV filter has traditionally been used for imaging Venus. It is made from several colored glasses, but only transmits ~ 65% of incoming UV light in the 300 - 400 nm region. Another vendor recently discontinued a 1.25" mounted UV filter due to NIR light leakage, but offers a 2" unmounted version that only reaches 80%T. Astrodon offers you both sizes and higher performance. Like the highest quality Generation2 Astrodon LRGB filters, the UVenus filter minimizes halos around bright stars.

CXB (formerly Astrodon) UVenus filters are guaranteed to achieve >90% transmission. The actual scan below has an average transmittance of 98.2% from 325 - 381 nm, while minimizing out-of-band light leakage. This outstanding performance saves you time when imaging weak UV signals, while providing high contrast due to low light-leakage. You do not need a separate filter to block the NIR with the UVenus filter.

CXB (formerly Astrodon) UVENUS FILTER SPECIFICATIONS

• 1.25" mounted and 49.7 mm diameter unmounted

• 3.000+/-0.025 mm substrate thickness

• Single, striae-free fused silica substrate

• 1/4 wave substrate prior to coating

• < 0.5 arcminute parallelism before coating

• Hard coated to edge

• Guaranteed to > 90%T peak transmission (>94% typical)

• <0.01%T 285-305 nm; <0.1%T 420 - 1100 nm

WARNING!This filter is NOT to be used for visual observations, specifically the sun or UV light sources.
